VIAIR 450C 150 PSI 1.8 CFM 12 Volt C-Model Electric Air Compressor Kit 45040
This compressor is offered in the configuration identified by the selected title and product photographs. The details below describe the stated dimensions, construction, components and operating arrangement where these are provided. Compare these details with the space, equipment and intended application before choosing the item.
Specifications

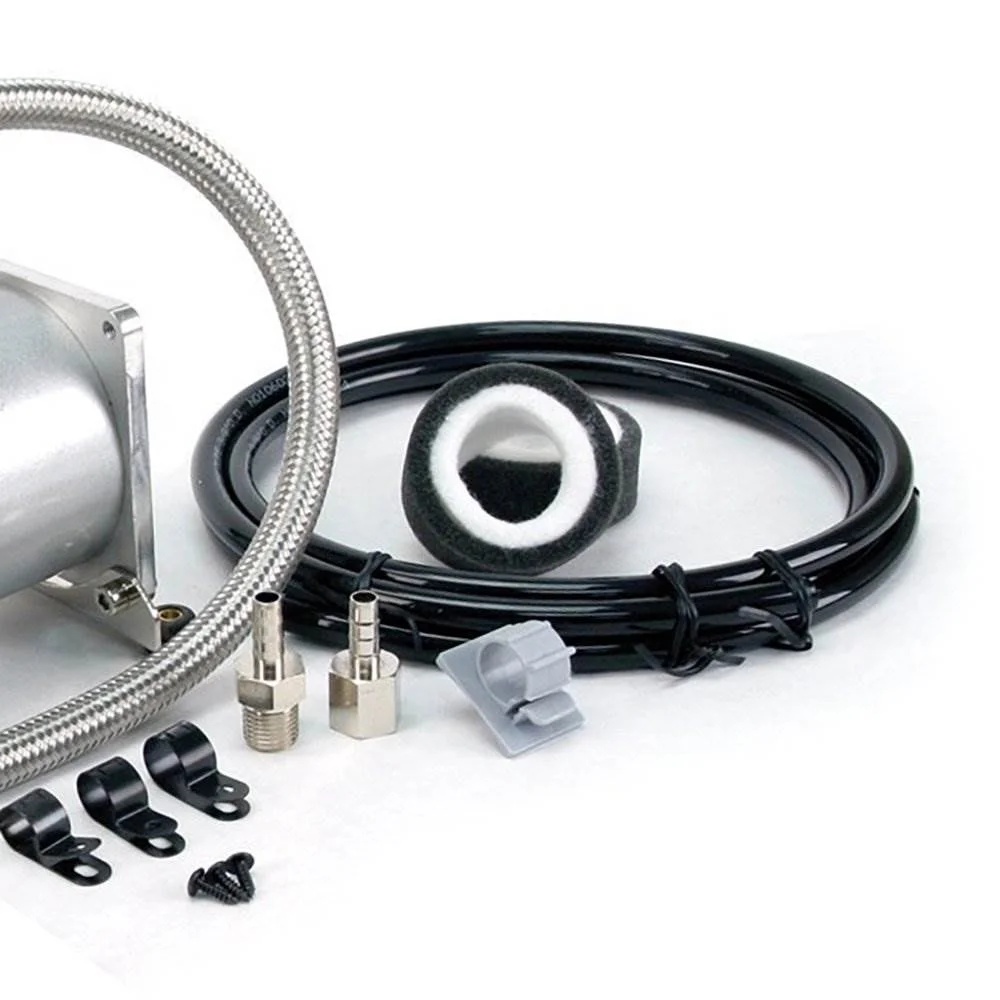

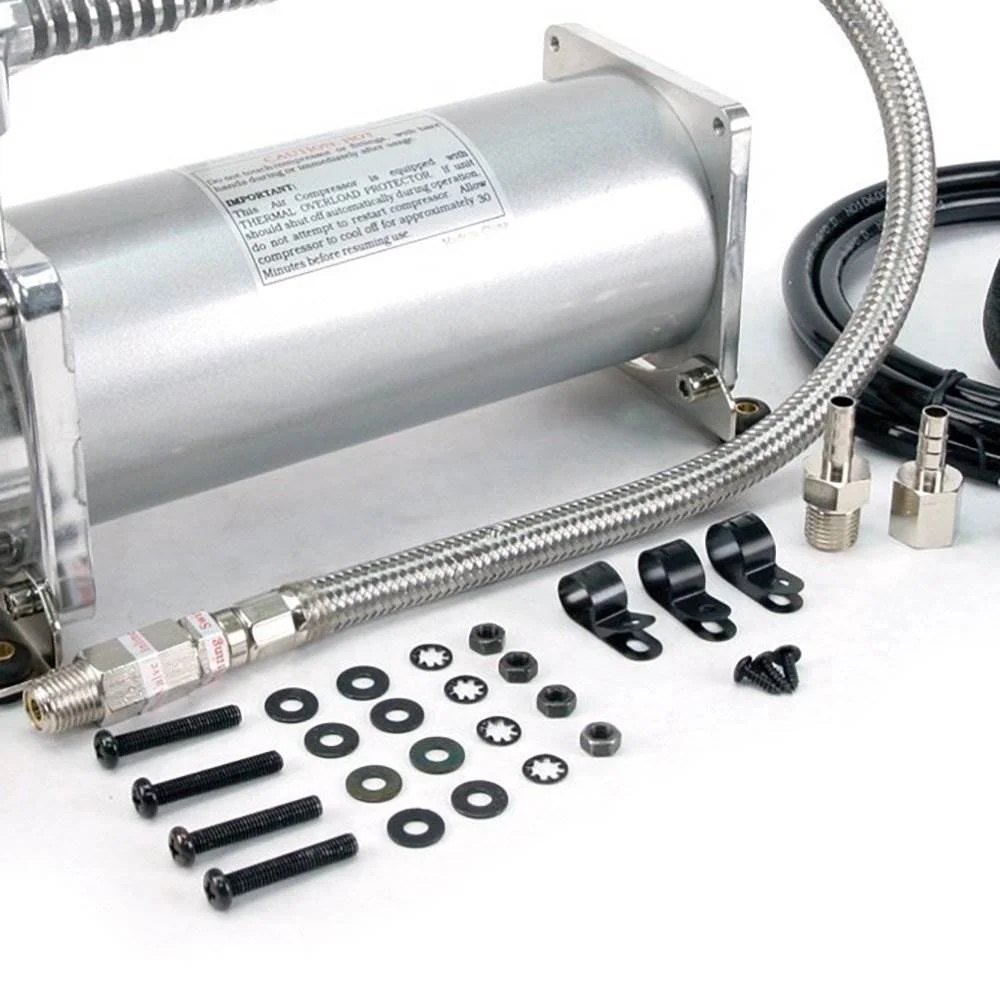

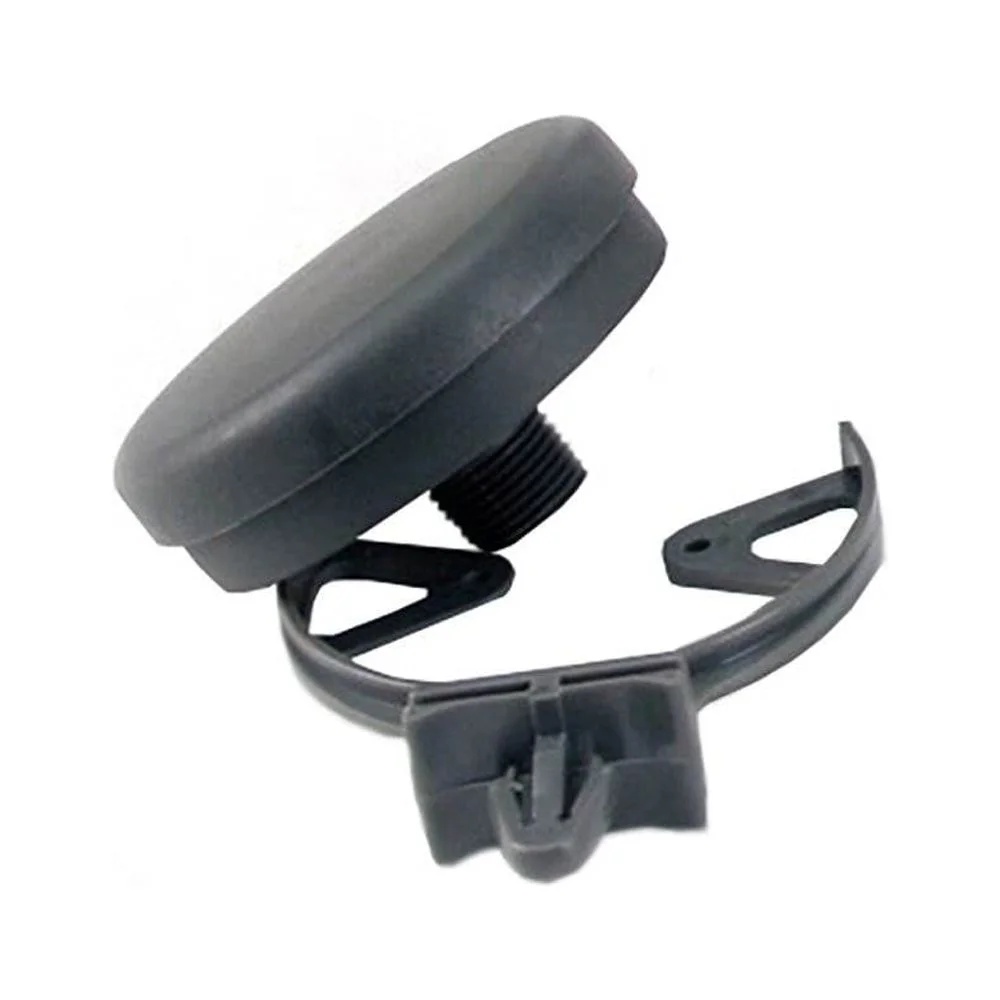

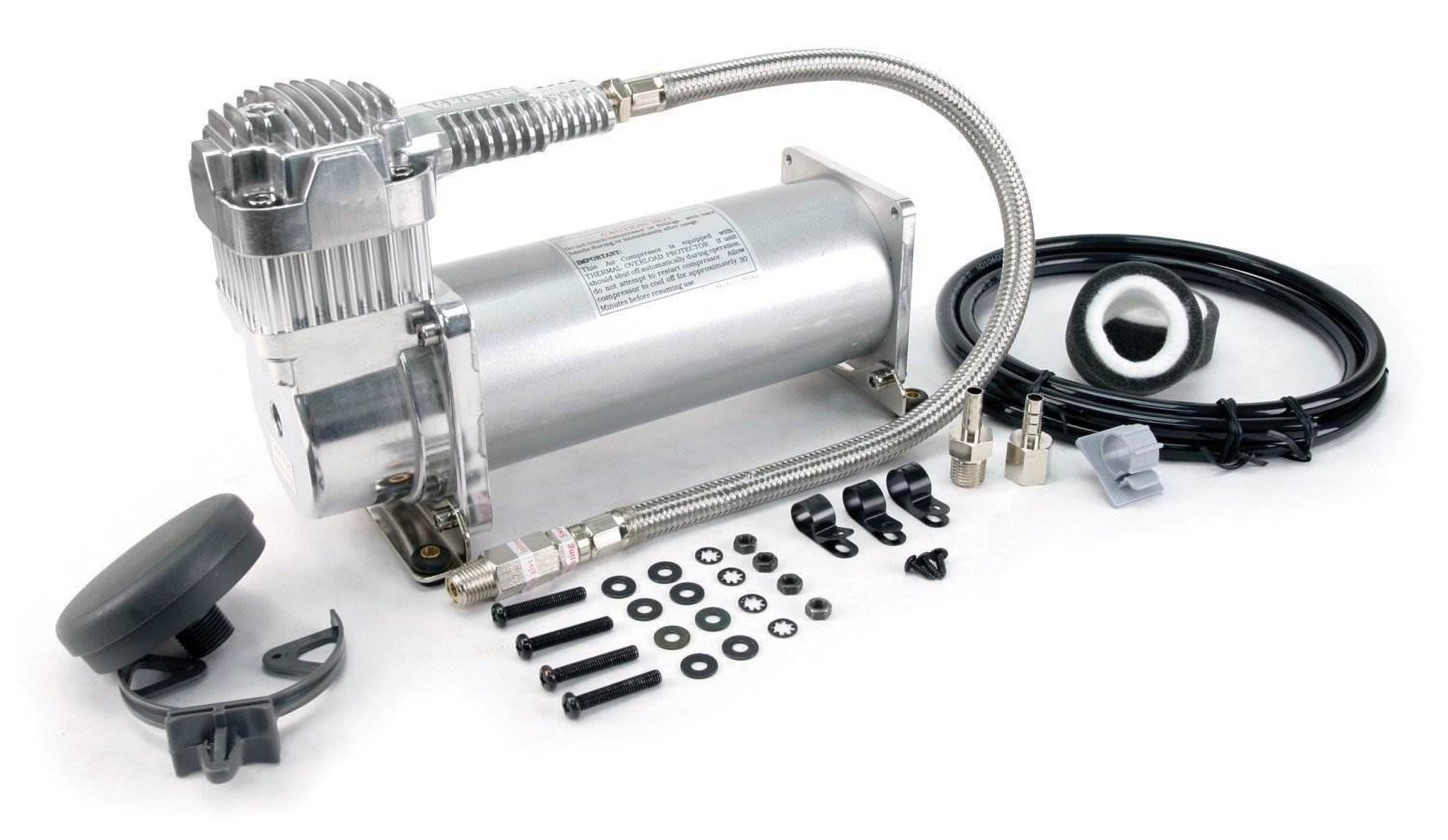

| Entire kit includes | 450C chrome air compressor, air filter assembly, set of remote mount brackets, set of remote mount fittings, set of spare air filter elements, leader hose clips, air line clips with included hardware, 4 sets of nuts, bolts, washers, and lock washers, 1 heavy-duty tube style fuse holder, 1 heavy-duty pressure switch, 1 stainless steel braided leader hose, vibration insulators, 2 replacement air filter elements 1 air line |
|---|---|
| CFM at 0 PSI | 1.80 |
| CFM at 100 PSI | 0.94 |
| Motor amp draw | 23 amps |
| Motor voltage | 12-volt DC |
| Horsepower | 0.25 |
| Duty cycle | 100 percent at 100 PSI |
| Max PSI | 150 PSI |
| Power type | Electric |
| Oil type | Oil free |
| Pump drive | Direct drive |
| Pump type | Single-stage |
| Tank included | No |
| Tank outlet | 0.25-inch |
| Max air tank size | 5 gallon |
| Air filter | yes |
| Pressure gauge | No |
| Ingress protection rating | IP67 |
| Product/item type | Air compressor |
| Material | Aluminum |
| Color | Chrome |
| Dimensions (L x W x H) | 10.6 x 4 x 6.87 inches |
| Weight | 10.8 pounds |
| Listed sizes and ratings | 150 PSI; 1.8 CFM; 12 Volt |
| Model reference | VIAIR 450C |
Additional product details
- For all your air compression needs on the job or simply for everyday life, choose the powerful Viair 150 PSI 450C Air Compressor Kit.
- It includes a 0.25-inch stainless steel braided leader hose with check valve.
- It can be used with an air tank up to 5 gallons.
- Choose quality equipment and get the job done quickly and safely with the Viair 150 PSI 450C Air Compressor Kit.
- Includes a dependable 450C compressor with 12-volt permanent magnetic motor
- Compressor can run continuously for 15 minutes and produces 1.80 CFM at 0 PSI head pressure
- Includes 0.25-inch stainless steel braided leader hose with inline check valves and insulated wiring for simple installation
- 2 replacement air filter elements
Fit and setup
Match the tool to the intended material and task, using the stated operating ratings, fastener sizes or accessory connections. Pneumatic and cordless systems require compatible supporting equipment. Check the supplied-content list before selecting a separate compressor, battery, charger, blade or other attachment.
Care and maintenance
Follow the operating instructions for setup, adjustment, inspection and maintenance. Disconnect the relevant air or electrical supply before changing accessories or clearing a blockage.
Included items
The supplied configuration is identified by the product title and any explicit contents listed above. Decorative props and other accessories shown in lifestyle images are not included unless expressly identified as part of the supplied product.
