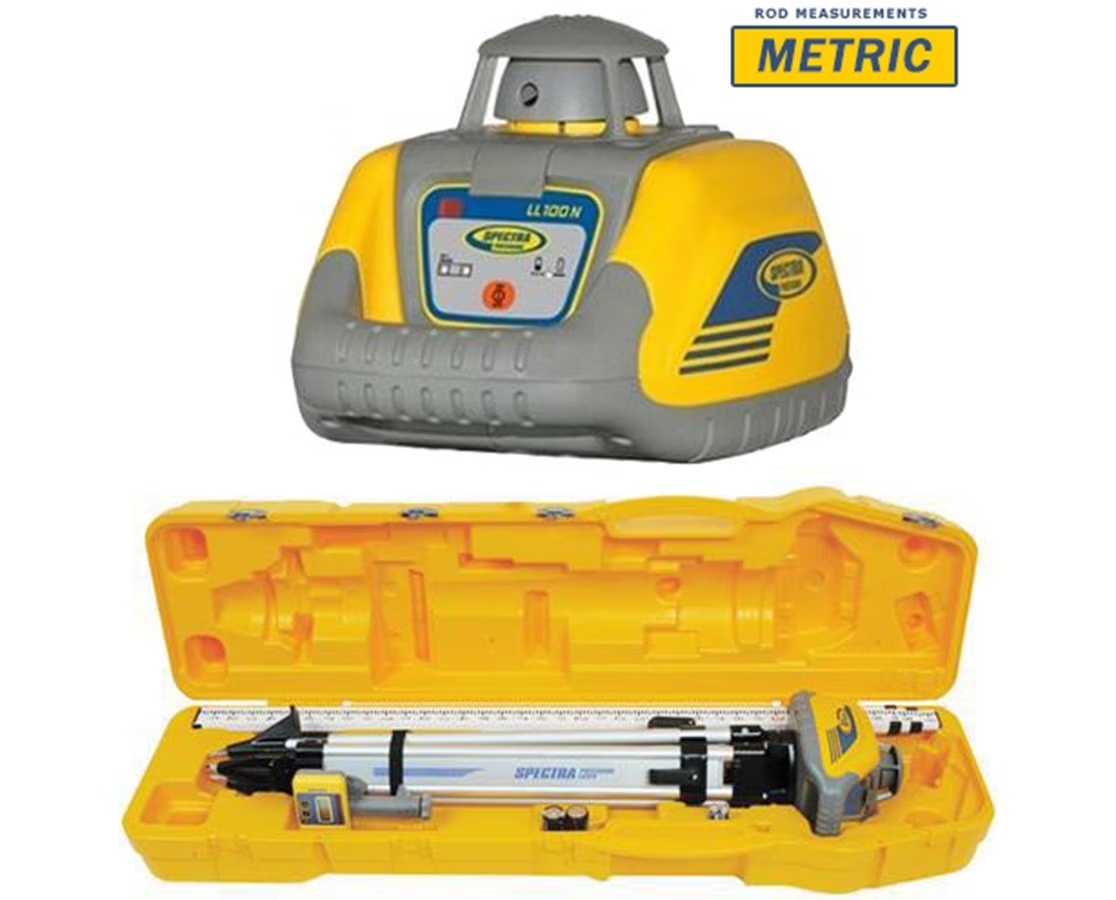

Spectra Precision LL100N-3 Laser Level
This workshop tool or accessory is offered in the configuration identified by the selected title and product photographs. The details below describe the stated dimensions, construction, components and operating arrangement where these are provided. Compare these details with the space, equipment and intended application before choosing the item.
Specifications
| Accuracy | -1/8 inch at 100 feet (3mm at 30 meters) |
|---|---|
| Working range | up to 1,150 feet (350 meters) diameter with detector (sold separately) |
| Self-leveling range | -5 degrees |
| Rotation speed | 600 RPM |
| Battery type | 4 x D-cell alkaline batteries (included) |
| Battery life | up to 80 hours |
| Operating temperature range | 14-F to 122-F (-10-C to 50-C) |
| Water and dust resistance | IP54 |
| Dimensions | 6.7″ x 6.5″ x 8.7″ (17cm x 16.5cm x 22cm) |
| Weight | 5.9 lbs (2.7 kg) including batteries. |
| Weight | 5.9 lbs (2.7 kg) including batteries. Product DescriptionThe Spectra Precision LL100N is a self-leveling rotary laser designed for use in various construction and surveying applications. It projects a highly visible laser beam, which can be used for a wide range of indoor and outdoor leveling tasks, such as setting foundations, footings, and slabs, checking elevations, aligning pipes and fences, and grading. The LL100N is easy to set up and use, with a simple one-button operation and automatic self-leveling capability. It also features a durable, water-resistant housing and a long battery life for extended use in the field. The LL100N comes with a laser receiver and clamp, a tripod, and a carrying case for easy transportation and storage. In The Box |
| Model reference | LL100N-3 |
Additional product details
- Product DescriptionThe Spectra Precision LL100N is a self-leveling rotary laser designed for use in various construction and surveying applications.
- The LL100N is easy to set up and use, with a simple one-button operation and automatic self-leveling capability.
- The LL100N comes with a laser receiver and clamp, a tripod, and a carrying case for easy transportation and storage.
- LL100N Laser Level
- 2 x D-Cell Batteries
- HR320 Receiver with Clamp C59
- Q104025 Aluminum Tripod
- GR153 Grade Rod Metric (4,7 m)
- 1282-1981 “All in One” Carrying Case
- LL100N Self-Leveling Rotary Laser Manual Specifications
- LL100N Self-Leveling Rotary Laser Manual
Fit and setup
Match the tool to the intended material and task, using the stated operating ratings, fastener sizes or accessory connections. Pneumatic and cordless systems require compatible supporting equipment. Check the supplied-content list before selecting a separate compressor, battery, charger, blade or other attachment.
Care and maintenance
Follow the operating instructions for setup, adjustment, inspection and maintenance. Disconnect the relevant air or electrical supply before changing accessories or clearing a blockage.
Included items
The supplied configuration is identified by the product title and any explicit contents listed above. Decorative props and other accessories shown in lifestyle images are not included unless expressly identified as part of the supplied product.
