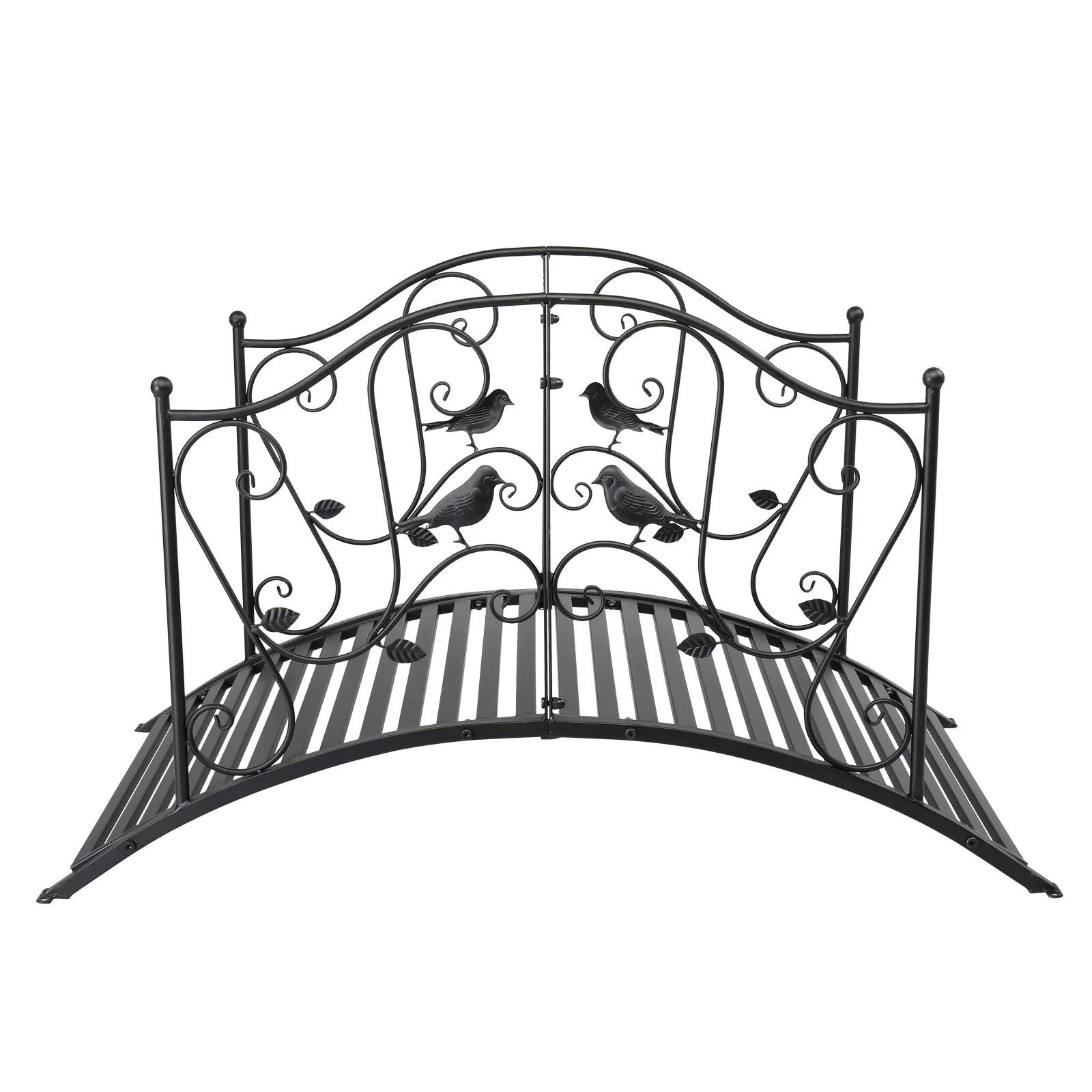

Garden Bridge, Metal Arch Backyard Garden Bridge Safety Siderails, Arch Path Bridge, Ourdoor Decorative Iron Foot Bridge for Pond and Backyard Landscaping (Black with Ball Flat Top), (47 x 26 x 28)”

Description

Garden Bridge, Metal Arch Backyard Garden Bridge Safety Siderails, Arch Path Bridge, Ourdoor Decorative Iron Foot Bridge for Pond and Backyard Landscaping (Black with Ball Flat Top), (47 x 26 x 28)”

This garden bridge is offered in the configuration identified by the selected title and product photographs. The details below describe the stated dimensions, construction, components and operating arrangement where these are provided. Compare these details with the space, equipment and intended application before choosing the item.

Specifications

Round tube at the top of the armrest	diameter 13.5mm, wall thickness 1mm
Round tube on the side of the armrest	diameter 16mm, wall thickness 0.8mm
Patterned round tube	diameter 8.4mm, wall thickness 0.8mm
Bird iron sheet wall thickness	1.3mm
Handrail connection flat tube	width 16mm, thickness 3.5mm
Square tube at the bottom of the armrest	20*20mm wall thickness 0.8mm

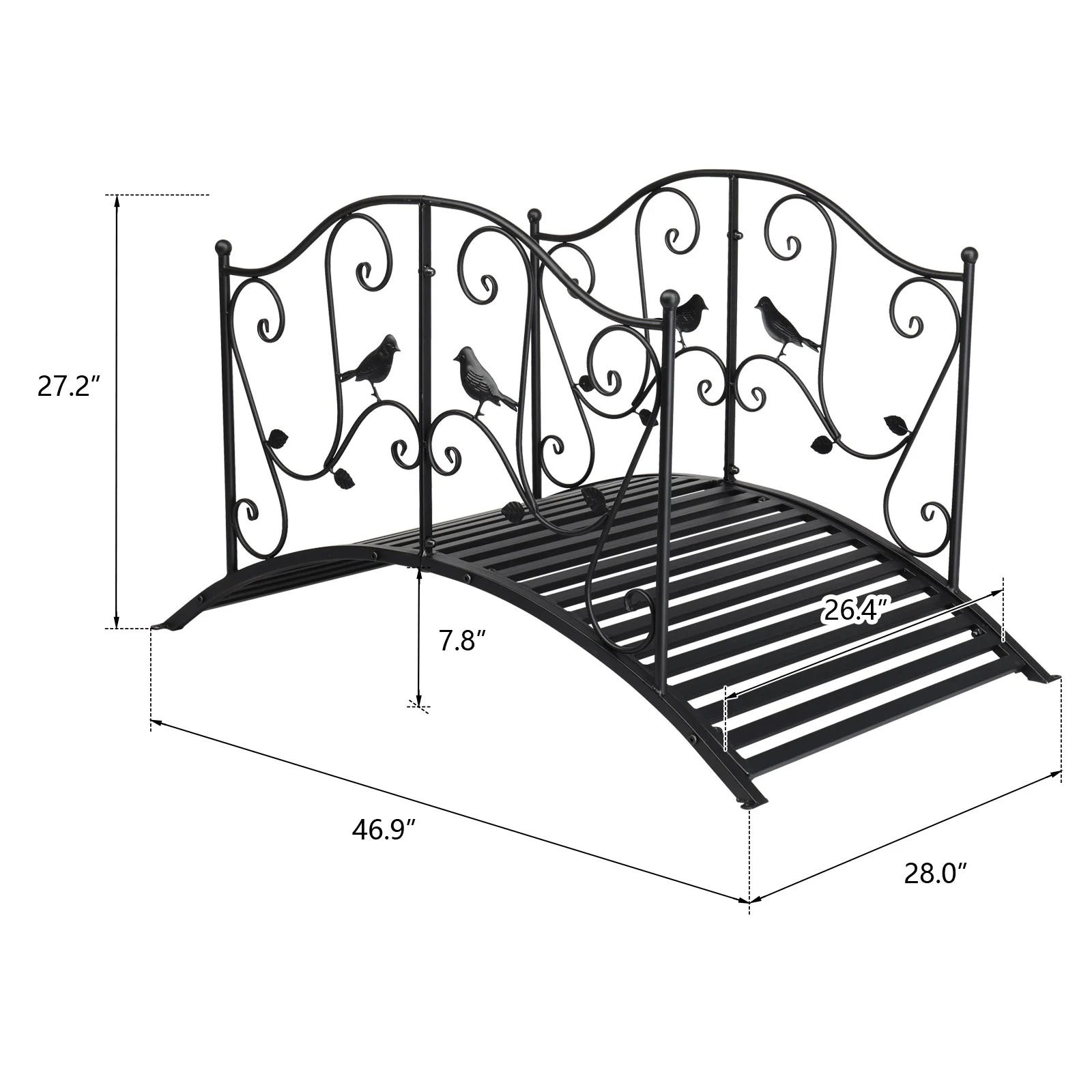

Inner diameter of bridge deck	119.5*63cm
Handrail height from bridge deck	49cm
The height of the arch bridge from the ground	19cm
Arm length	88cm
Hardware	9PCS M10*45mm screw, 5PCS M10*15mm screw, 13PCS nut, 4PCS ground nail: length 18cm
Selected color or finish	Black

Additional product details

• High quality steel material

Fit and setup

Compare the listed span, overall footprint and rail configuration with the intended garden or path location. Check the specified support and fixing arrangement, and use any stated load limit when planning the installation.

Care and maintenance

Follow the supplied assembly and finish-care instructions. Inspect the assembled connections and supporting surface periodically and maintain the listed material appropriately for its intended location.

Included items

The supplied configuration is identified by the product title and any explicit contents listed above. Decorative props and other accessories shown in lifestyle images are not included unless expressly identified as part of the supplied product.
